COLOUR-SWITCHING DRL

Bright White Mode

The crisp, bright white light is ideal for:

• Daytime Driving: Enhances your vehicle’s visibility to other road users, making it easier to spot in well-lit conditions.
• Off-Road Adventures: Illuminates trails and obstacles, ensuring a clear view of your surroundings.
• Worksite Use: Provides excellent visibility for tasks requiring extra visibility in day-time conditions.

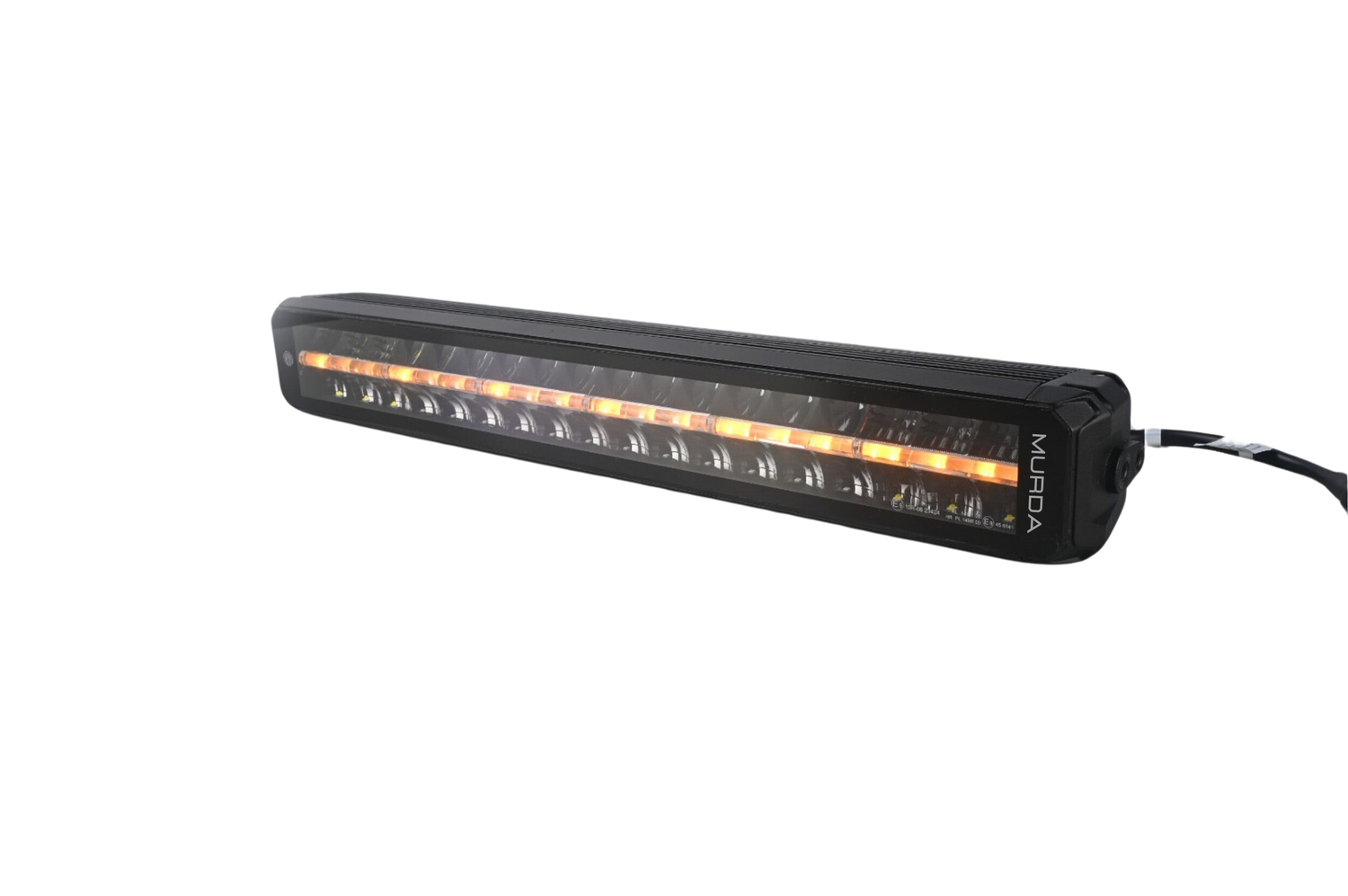

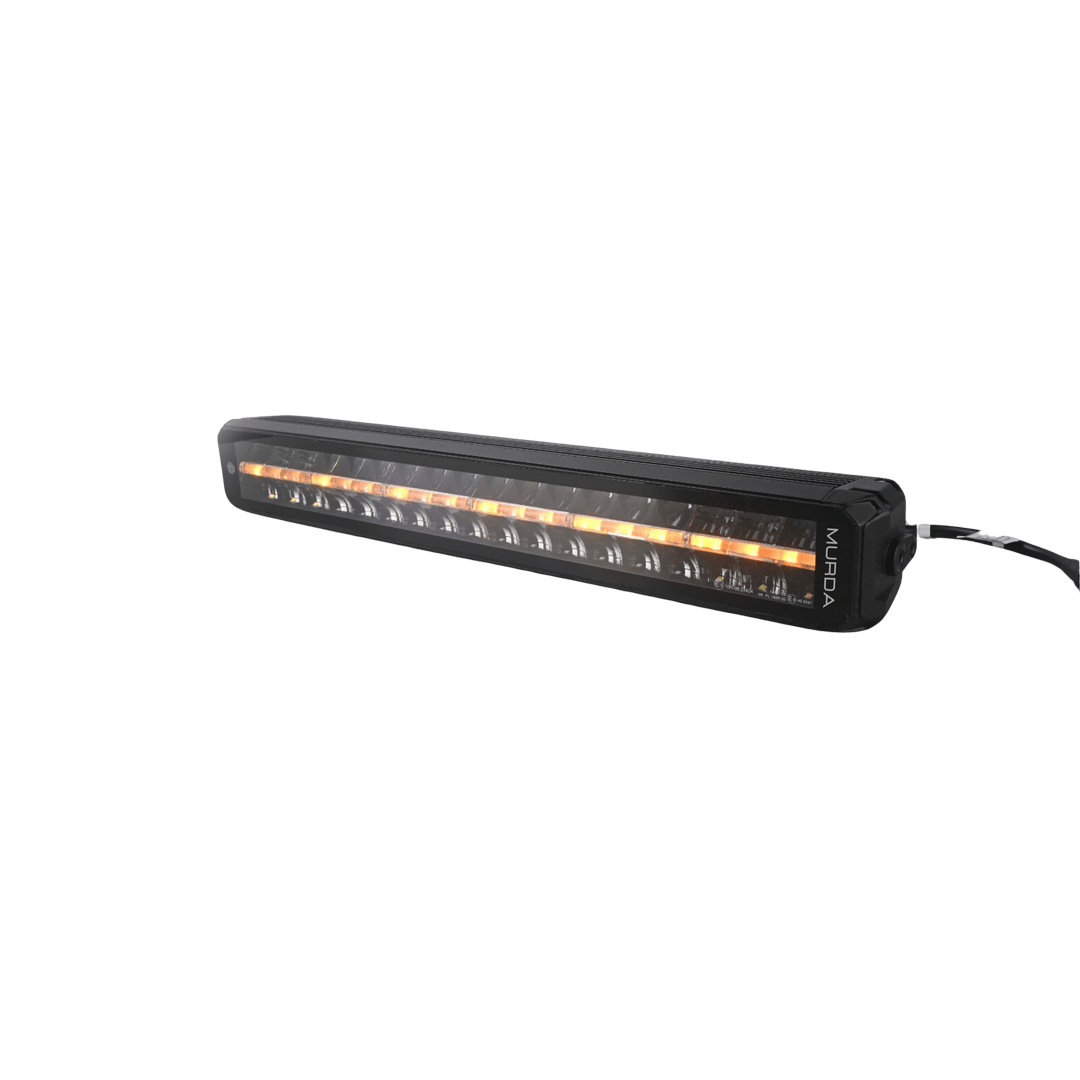

Amber Warning Mode

The brilliant amber light offers added safety in scenarios such as:

• Foggy or Rainy Weather: Cuts through poor visibility conditions, making your vehicle noticeable to others.
• Roadside Assistance: Acts as a hazard warning when stopped on the side of the road, alerting other drivers to your presence.
• Emergency or Utility Work: Signals caution in construction zones or during maintenance tasks, ensuring the safety of workers and pedestrians.

This dual-functionality light bar is designed to adapt to your needs, providing reliable performance whether you’re navigating tough terrain, ensuring workplace safety, or signaling caution in adverse conditions.

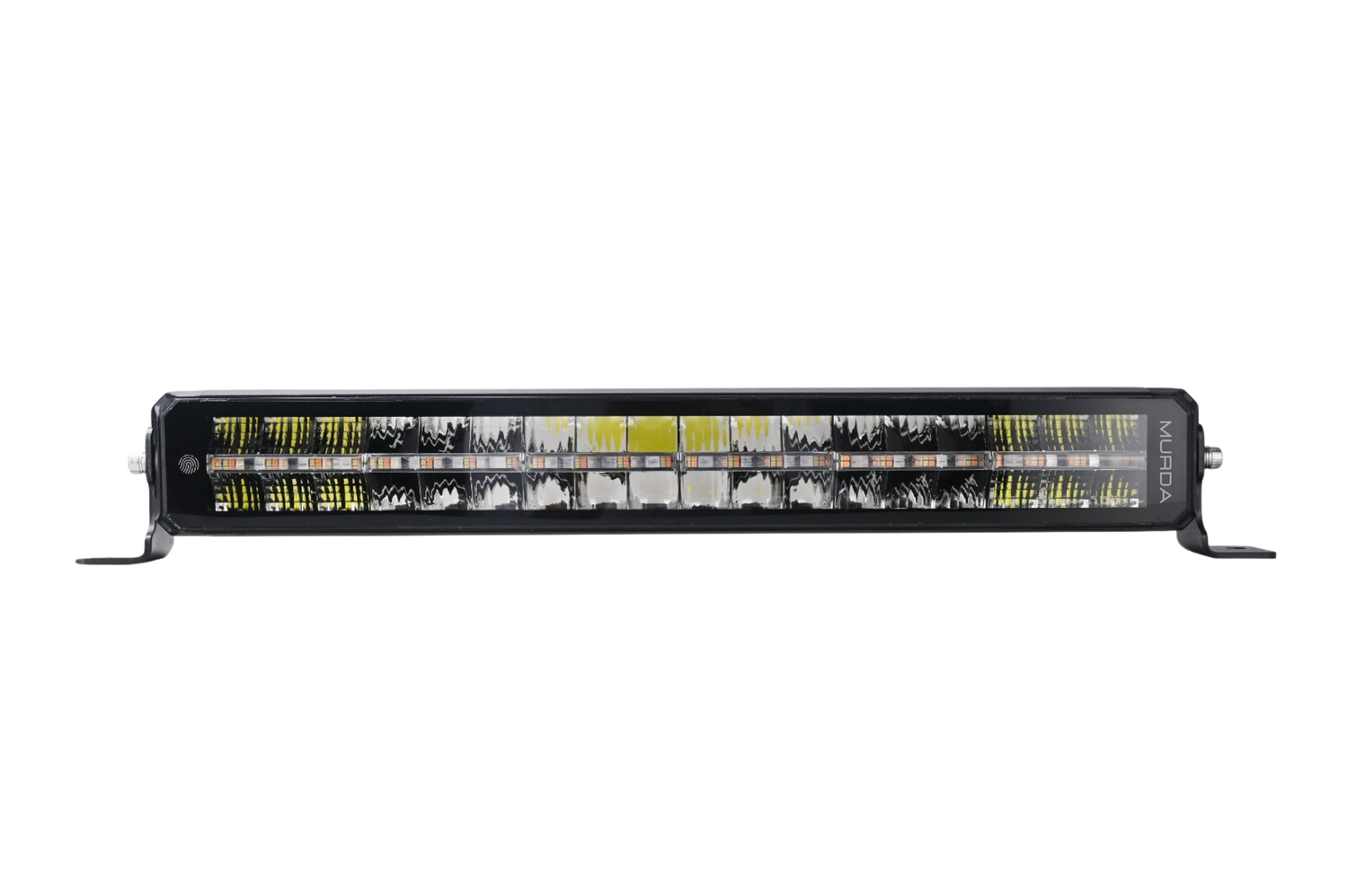

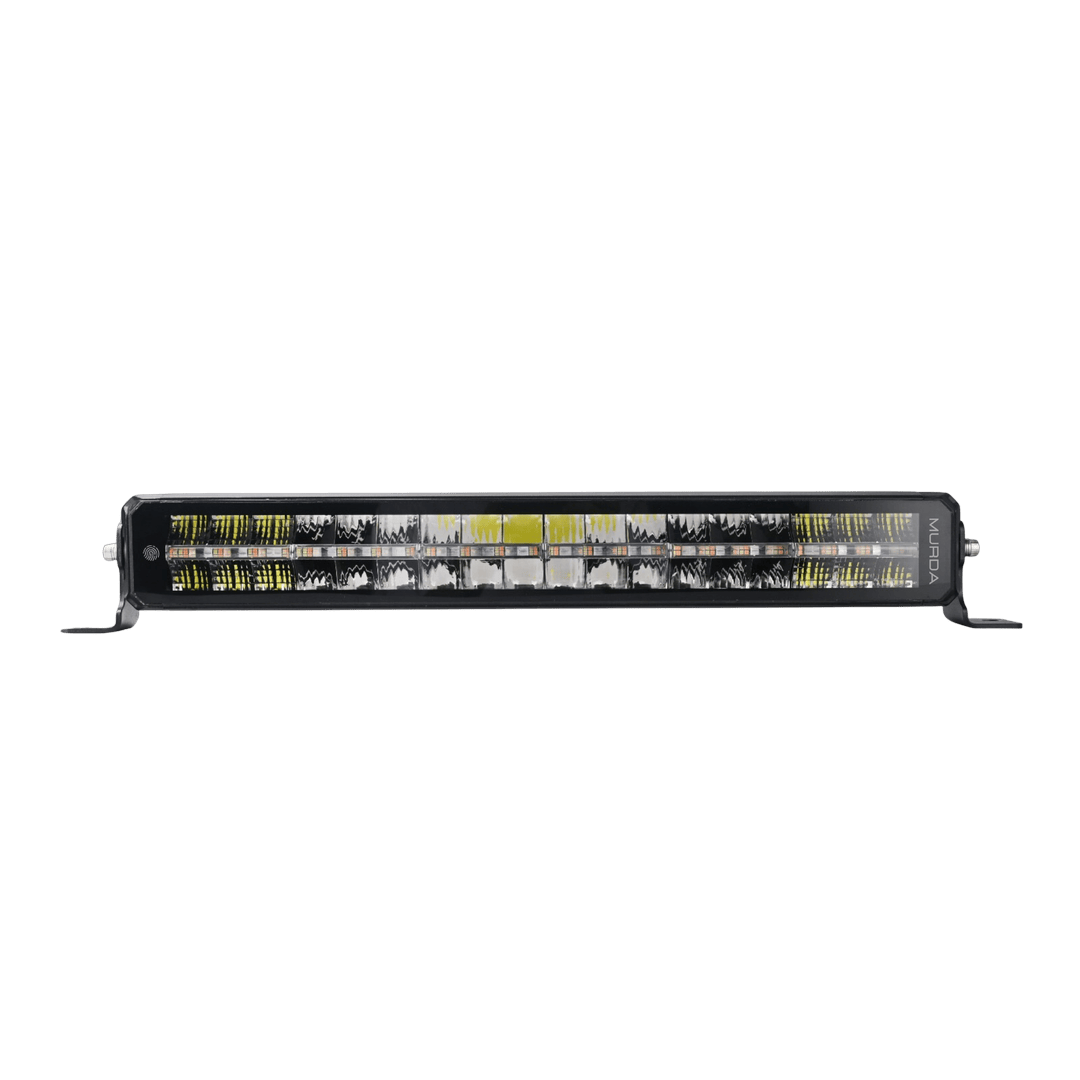

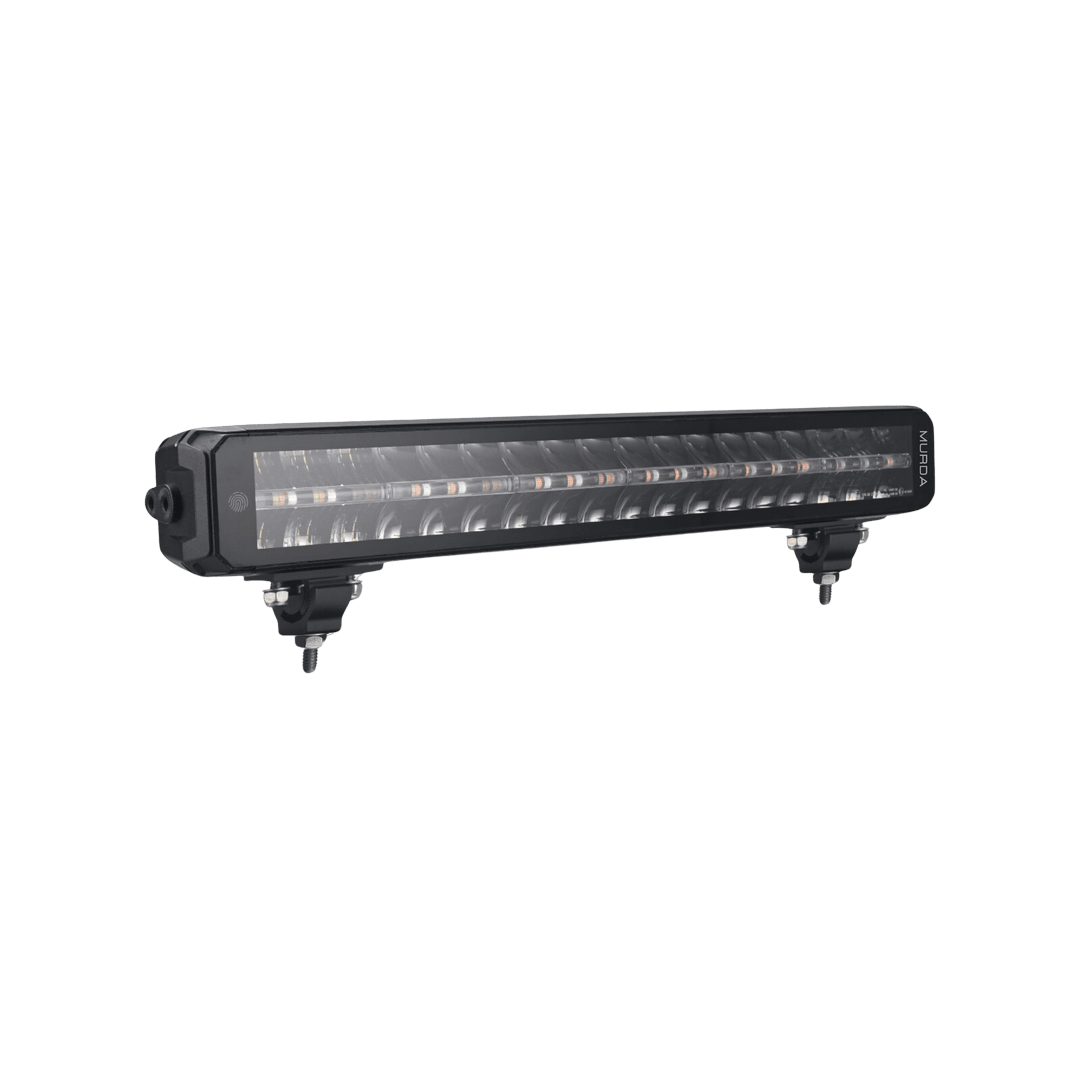

The MX20 (20-inch) Light Bar offers a sleek and compact design, perfectly suited for various mounting applications.

The light bar itself measures 570mm (22.8") in length, providing powerful performance in a streamlined package.

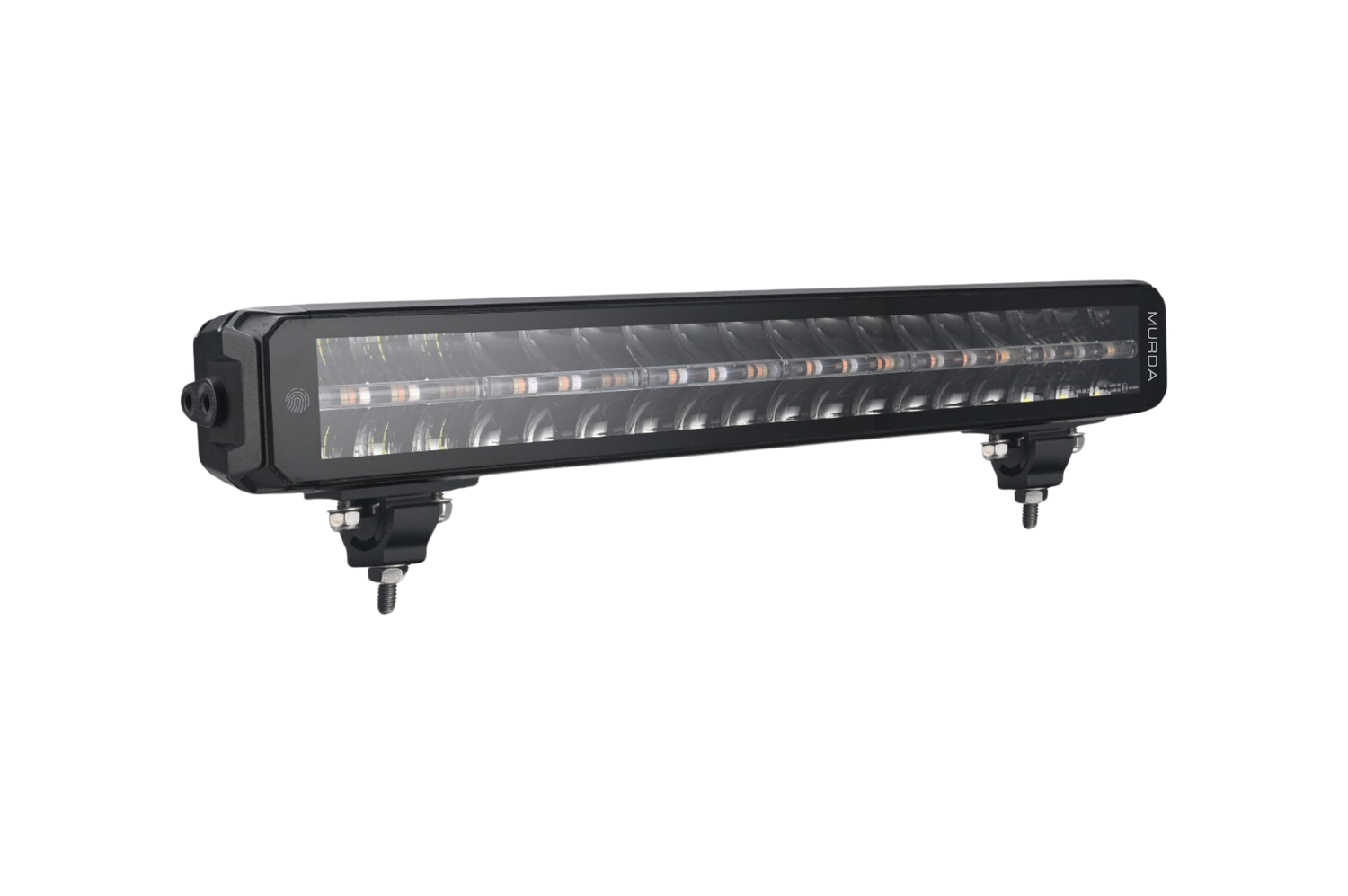

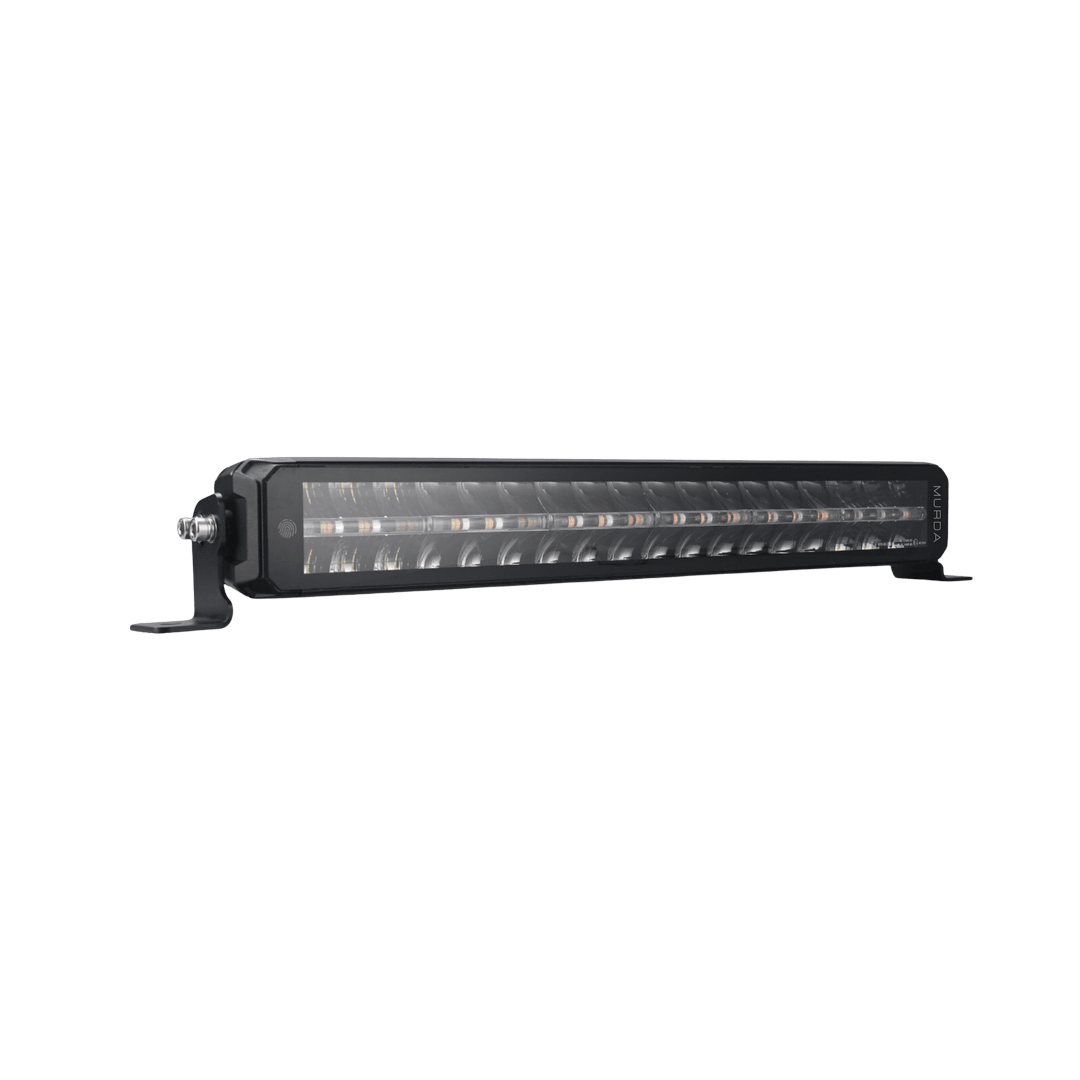

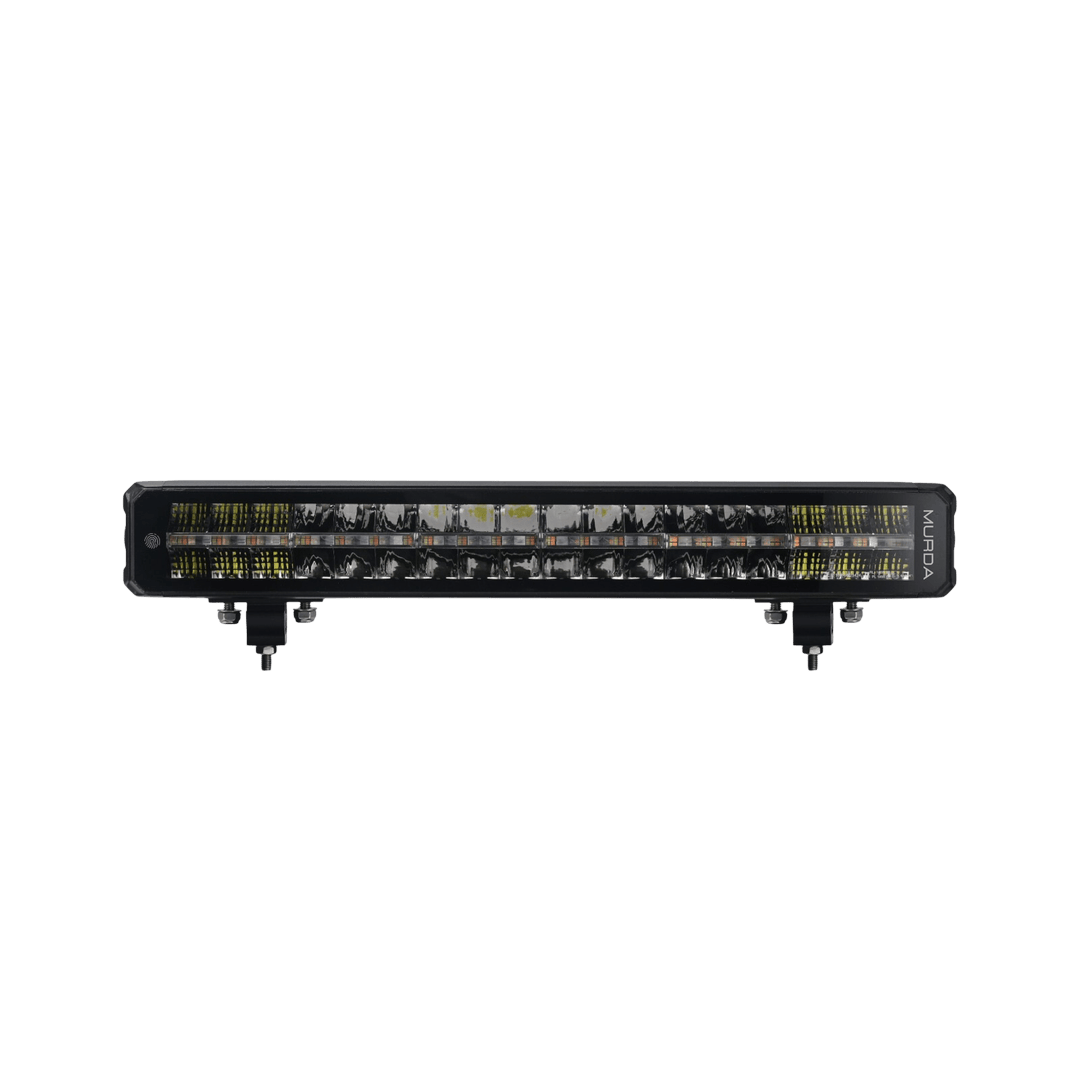

When equipped with the included end brackets, the total length extends to 656mm (26.2"), ensuring a secure fit and enhanced stability.

Here’s a breakdown of the key specifications for the MX20 Light Bar and their meanings:

• Wattage (120W):
  Wattage measures the power consumption of the light bar. A higher wattage typically indicates brighter output, meaning the MX20 uses 120 watts of power to produce its illumination.

• Beam Type (Combo):
  The combo beam combines two beam patterns: a spot beam for long-range illumination and a flood beam for wide-area coverage. This gives you the best of both worlds, providing visibility both close and far.

• Distance (1 lux at 710m):
  Lux is a unit of measurement for the amount of light that reaches a specific area. 1 lux at 710m means the light bar will illuminate an area 710 metres away with 1 lux of light intensity. A lux value of 1 is roughly equivalent to the light you’d get from a full moon on a clear night, so this shows the impressive long-distance reach of the light bar.

• Working Voltage (10-32V DC):
  This refers to the range of electrical voltages the light bar can safely operate within. The MX20 works with 10-32V DC power, making it compatible with most vehicles, including cars, trucks, and off-road vehicles.

• Current Draw (10A @ 12V):
  Current draw refers to how much electricity the light bar uses when operating. The MX20 draws 10 amps of current when powered by a 12V system, which helps in determining the power requirements for installation.

• Ingress Protection (IP68/IP69K):
  Ingress protection (IP) ratings indicate the light bar’s resistance to dust and water. IP68 means the light is dust-tight and can be submerged in water up to a certain depth, while IP69K indicates it can withstand high-pressure water jets, making the MX20 incredibly durable in all weather conditions.

• Impact Rating (IK09):
  The IK rating measures the light bar's resistance to impact and mechanical damage. IK09 means the MX20 can withstand impacts from a 5kg object dropped from 40cm, showing it's resistant to rough handling and harsh environments.

• Colour Temperature (6000K Cool White):
  Colour temperature refers to the hue of the light emitted by the light bar. 6000K is a cool white light, resembling daylight, which provides clear, bright illumination without the yellowish tone of warmer lights. This helps with better visibility and reduces eye strain.

• Weight (3kg):
  The weight of the light bar is 3kg, which provides a balance between durability and ease of installation. The moderate weight ensures it is sturdy yet manageable for mounting.

• Lumens (10,680):
  Lumens measure the total amount of visible light emitted by the light bar. The MX20 produces 10,680 lumens, meaning it delivers a very bright and powerful light output that’s ideal for any challenging environment.
